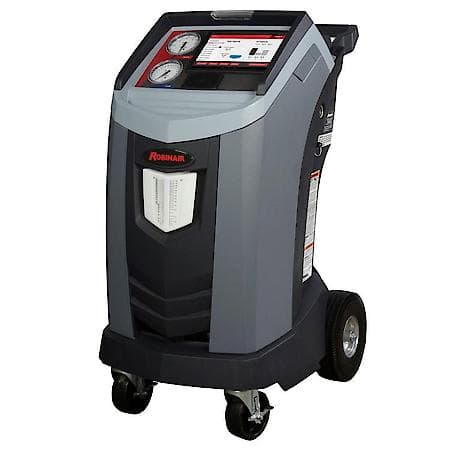

Robinair 34998: Automated A/C Service for a Connected Workshop
Keep R-134a service organized from the initial recovery to the final recharge. The Robinair 34998 Connected ACS Machine brings core A/C service functions together in one station, with touchscreen guidance and digital reporting to support busy repair shops, dealerships and fleet workshops.
A Complete Service Sequence
Program recovery, vacuum, an optional vacuum leak test and recharging as an automatic sequence. Technicians enter the required service settings and follow the prompts, reducing the need to operate separate controls at each stage. A vacuum leak test monitors pressure changes that may indicate a leak before charging.
Connected Reporting and Software Updates
Wi-Fi and Bluetooth connectivity support a connected service workflow. Export service summaries digitally or use Mopria Print Service with a compatible wireless printer. Wireless software updates help maintain the machine; optional refrigerant-capacity database downloads require a separate purchase.
Built-In Refrigerant, Oil and Dye Management
- Automatic internal refill: Replenishes the internal refrigerant supply for service.
- Oil management: Automatic oil drain and injection, with two oil-injection bottles.
- UV dye injection: A dedicated dye-injection bottle supports compatible leak-detection workflows.
- Automatic air purge: Helps remove non-condensable air from the internal refrigerant supply.
Key Specifications
- Model: 34998
- Refrigerant: R-134a
- Recovery efficiency: Manufacturer-rated 98.5%
- Charge accuracy: ±0.5 oz (±15 g) at 70–75°F (21–24°C)
- Service hoses: 9 ft (2.75 m)

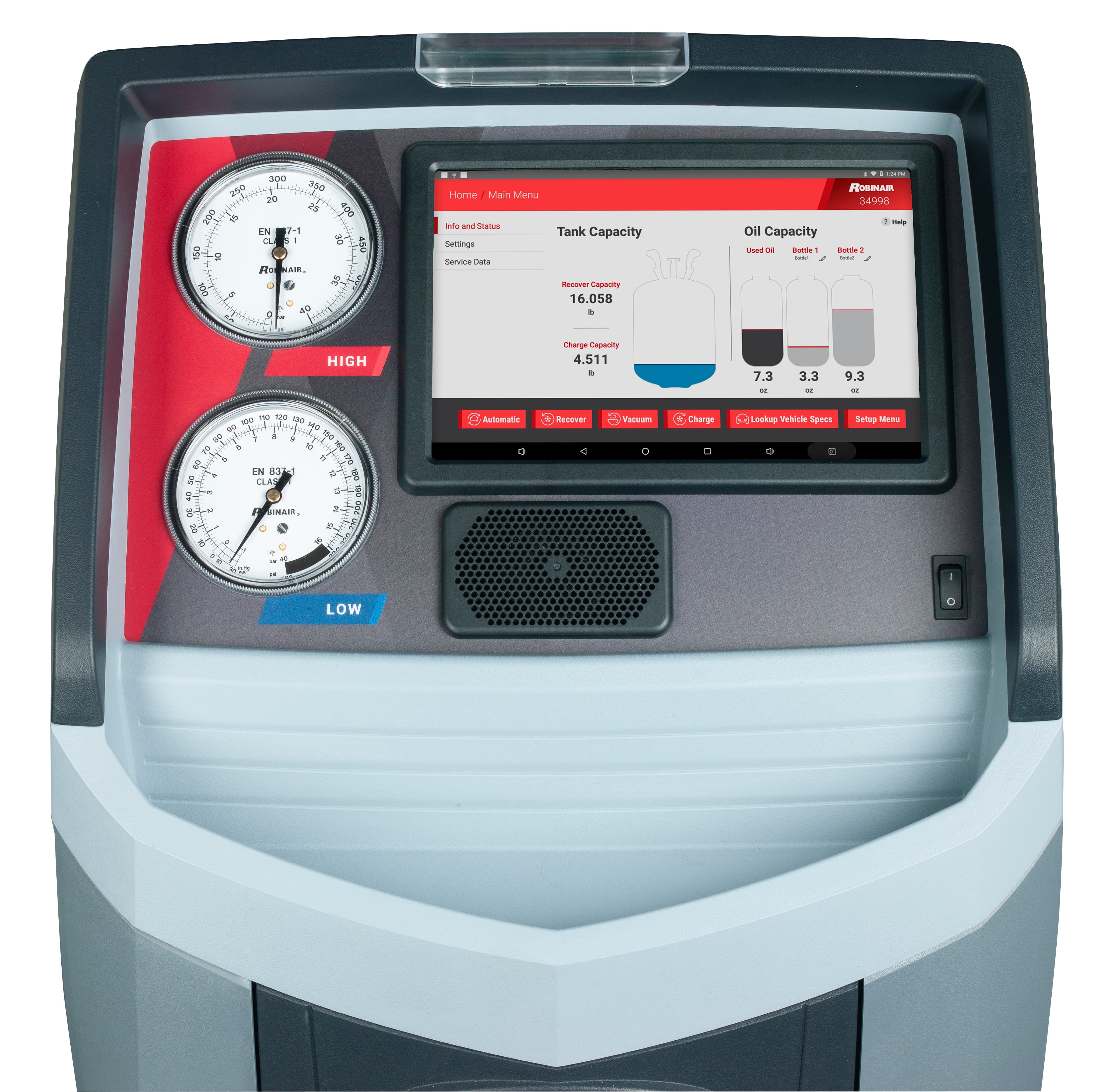

- Interface: Capacitive touchscreen; English, French and Spanish
- Standards: SAE J2788 and UL 1963
Expand Your Service Capabilities
Optional accessories include the ACS-250 wireless vehicle interface and a compatible refrigerant-capacity database for vehicle identification and capacity lookup. Bluetooth temperature probes can add vent-temperature readings to service reports. Accessories and database software are purchased separately.
Application and Maintenance
Use the 34998 with R-134a vehicle A/C systems and follow the vehicle manufacturer's refrigerant-charge and oil requirements. Select equipment intended for the refrigerant being serviced. Maintain the machine with compatible Robinair 34724 replacement filters or the 13172 maintenance kit.
For detailed operating procedures and specifications, see the Robinair 34998 product information and operator's manual.
