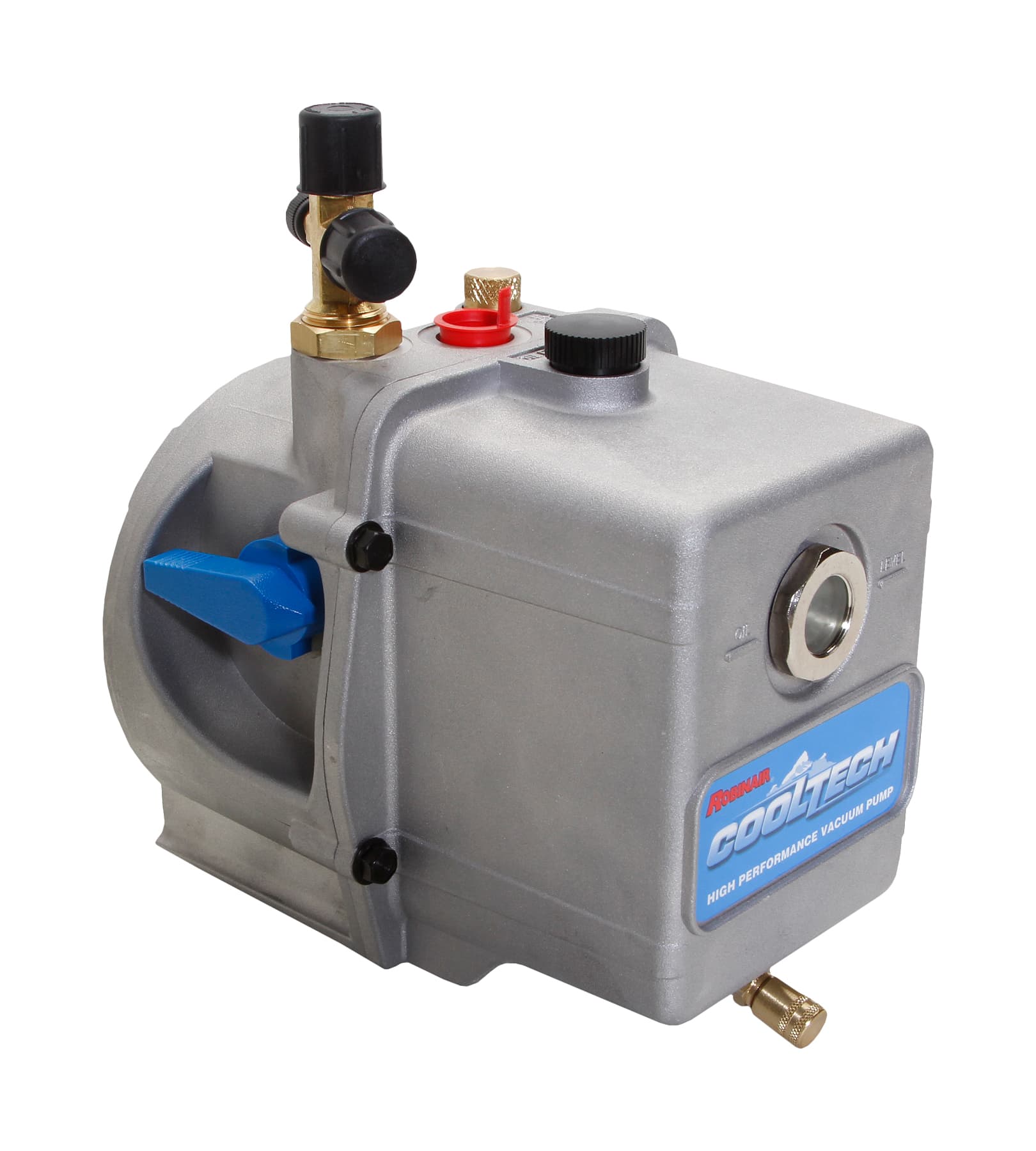

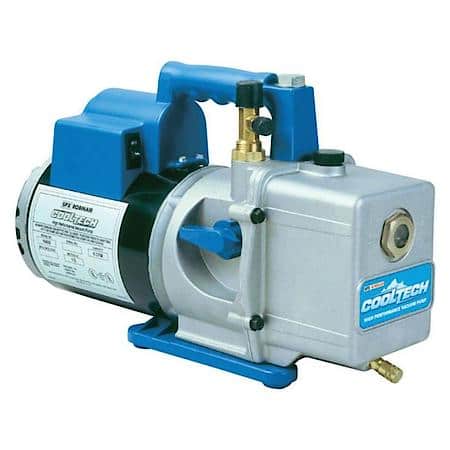

Streamline deep-vacuum evacuation with the Robinair 15600 CoolTech 6 CFM Two-Stage Vacuum Pump (SKU: ROB15600). Engineered for professional HVAC service technicians, fleet maintenance specialists, and commercial auto repair facilities, this industrial-grade robinair cooltech pump combines a 6 CFM displacement rate with a dual-stage rotary vane design to reach ultralow vacuum levels in less time.
Built with heavy-duty cast aluminum housing and a high-torque motor, the Robinair 15600 features a gas ballast feature that purges moist air from the system before it can condense in the oil reservoir. An integrated intake isolation valve allows technicians to isolate the pump from the system during decay testing without losing vacuum pressure. Coupled with forced-feed lubrication and a clear sight glass, this reliable 6 cfm vacuum pump guarantees long-term durability when used with premium robinair vacuum pump oil.
Key Features & Capabilities
6 CFM Free Air Displacement: Delivers quick pull-down performance tailored for large automotive systems, commercial refrigeration, and residential HVAC units.
Two-Stage Rotary Vane Design: Achieves ultimate deep vacuum levels down to 15 microns for complete moisture and gas removal.
Intake Isolation Valve: Enables precise vacuum decay testing by sealing the system without disconnecting service hoses.
Adjustable Gas Ballast: Mixes dry air with moisture-laden vapor to prevent internal oil contamination and prolong fluid life.
Forced-Feed Internal Lubrication: Supplies clean, filtered oil continuously to key wear points to reduce thermal buildup and pump wear.
Technical Specifications
Model: Robinair 15600 (CoolTech Series)
SKU: ROB15600
Free Air Displacement: 6 CFM
Number of Stages: 2-Stage Rotary Vane
Ultimate Vacuum Rating: 15 Microns
Voltage: 110V–115V / 60 Hz
Application: Automotive A/C service, commercial HVAC/R maintenance, and fleet refrigeration
15600: questions before buying
What distinguishes the Robinair 15600?
This two-stage, 6 CFM pump has an Iso-Valve to isolate the pump and a gas ballast that reduces condensation. Robinair specifies 115V, 60 Hz and a 15-micron factory rating.
Is it suitable for every refrigeration system?
No. Robinair excludes ammonia, lithium bromide and flammable-refrigerant applications on this model’s product page. Match the equipment to the refrigerant and follow the operating manual.
Compare related models: 15500, 15800.
Manufacturer specifications and operating instructions: Robinair 15600.
