One Professional R-134a Machine. Built for Conventional, Hybrid & EV A/C Service.

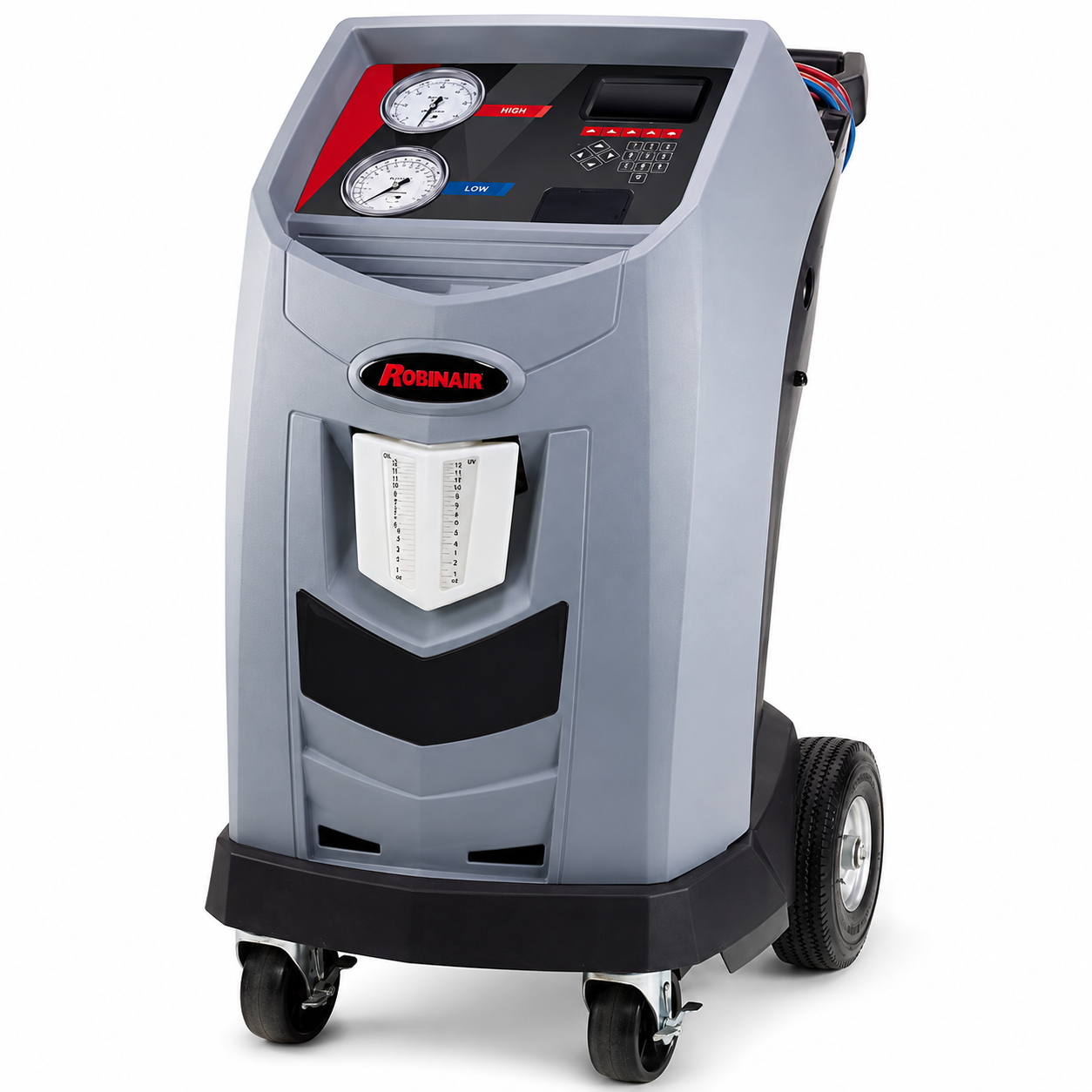

Take your A/C service capabilities to the next level with the Robinair 34788NI-H Premier R-134a Refrigerant Recovery, Recycling & Recharging Machine — a fully automatic professional solution engineered to service both conventional vehicles and high-voltage hybrid/electric vehicle A/C systems.
From recovery and recycling to evacuation, leak testing and precision recharging, the 34788NI-H brings the complete R-134a service process together in one powerful machine. Its fully automatic operation allows technicians to program recovery, vacuum, leak test and recharge procedures without manually operating panel valves—helping streamline workflow in busy professional shops.
98.5% Recovery Efficiency
Efficiency matters when every A/C job consumes both technician time and refrigerant.
Robinair rates the 34788NI-H at an industry-leading 98.5% recovery efficiency, with charging accuracy of ±0.5 oz (±15 g) under specified operating conditions. That combination gives technicians the precision needed for today's increasingly sensitive automotive A/C systems.
Ready for Hybrid & High-Voltage A/C Systems
This is where the 34788NI-H separates itself from the standard 34788NI.
Robinair specifically identifies the -H model as Hybrid/EV capable, allowing it to service A/C systems using high-voltage electric compressors in addition to conventional vehicles. That makes it a strong choice for workshops preparing for a growing mix of gasoline, hybrid and electric vehicles.
Fully Automatic Service That Saves Technician Time
Set the service parameters and let the machine handle the process.
The 34788NI-H provides fully automatic recovery, vacuum, leak testing and charging, eliminating the need to continually operate panel valves throughout the service cycle. Visual and audible notifications tell the technician when service has finished or when the machine detects a problem.
The machine also includes automatic air purge and automatic internal refrigerant refill, helping reduce routine manual intervention and keeping the machine prepared for the next job.

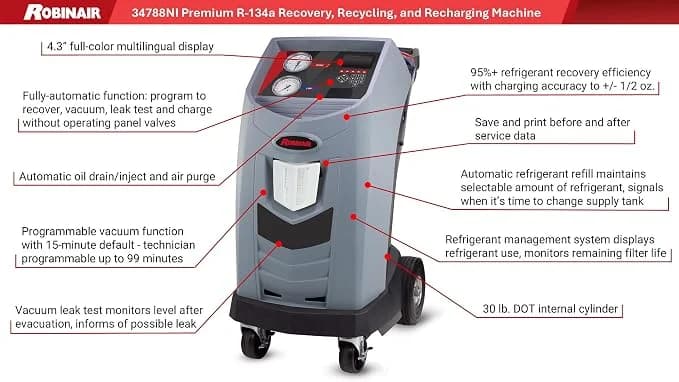

Why Professionals Choose the Robinair 34788NI-H
Hybrid & EV capable — Designed to service both conventional vehicles and high-voltage electric-compressor A/C systems.
Fully automatic operation — Program recovery, vacuum, leak test and charge without manually operating panel valves.
98.5% recovery efficiency — Professional refrigerant recovery engineered for efficient R-134a servicing.
±0.5 oz charge accuracy — Delivers precise refrigerant charging under Robinair's specified test conditions.
Automatic oil drain — Shows technicians the amount of recovered oil that needs to be replaced.
Automatic air purge — Removes system-damaging air without manually monitoring gauges or opening valves.
Automatic refrigerant refill — Maintains a selectable refrigerant quantity in the internal vessel and alerts the technician when the supply tank needs attention.
Vacuum leak testing — Monitors vacuum after evacuation and alerts the technician to a possible leak.
Programmable vacuum — Defaults to 15 minutes and can be programmed for up to 99 minutes.
A/C system flushing capability — Can flush residual oil or other liquid from the vehicle's A/C system; required flushing adapters are sold separately.
Refrigerant management — Tracks refrigerant usage and remaining filter life.
Expandable connectivity — Supports optional Wi-Fi/Bluetooth accessories, vehicle data capabilities and temperature probes.
Optional printer — Compatible with Robinair's 30038 printer for professional service documentation.
SAE J2788 compliant — Meets Robinair's listed SAE J2788 requirements.
34788NI-H: questions before buying
Does the 34788NI-H service R-1234yf?
The 34788NI-H is an R-134a machine. For R-1234yf vehicles, compare equipment specifically designed for that refrigerant.
What does the H model support?
Robinair identifies the 34788NI-H as capable of servicing high-voltage electric-compressor A/C systems as well as conventional R-134a applications. Follow the vehicle’s oil and service requirements.
Are printing and wireless features standard?
The manufacturer lists the printer, wireless module and vehicle-capacity database as optional additions. Confirm the accessories in your order before relying on those functions.

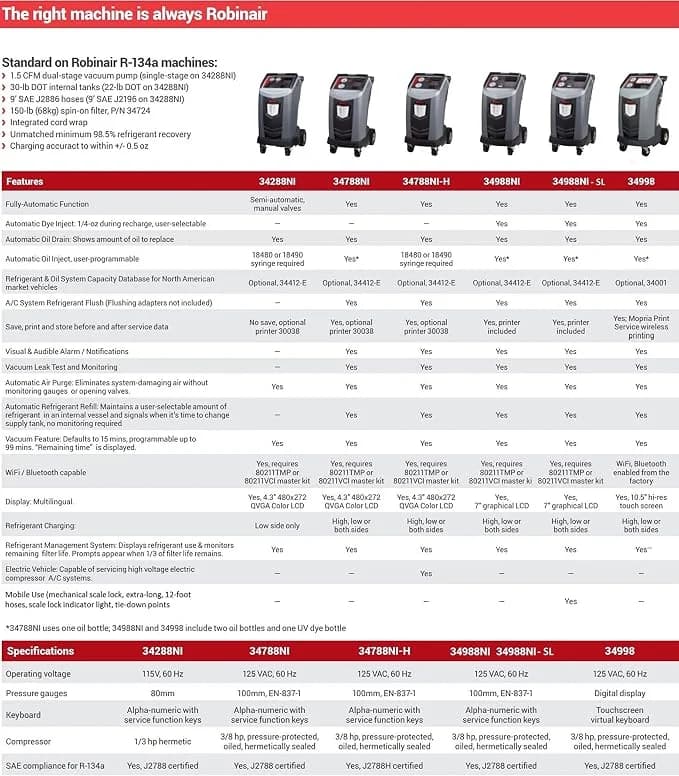

Compare related models: AC1234-4.
Manufacturer specifications and operating instructions: Robinair 34788NI-H.
